3m X 1m X 1m Galvanized Welded Gabion Mesh For River Bank Protection
Welded gabion mesh details:
- Material: Low carbon steel wire, Stainless steel wire
- Surface Finish: Electro galvanized, Hot-dipped galvanized, Galfan coated, PVC coated
- Connect Way: by Helical wire, by U post, H post
- Package: with pallet, or as per requirement
Welded gabion mesh advantage:
a. Easy to install
b. High zinc coating thus anti-rust and anit-corrosive
c. Low cost
d. High security
e. Colorful stones and shells etc can be used with gabion mesh to make beautiful appearance
f. Can be made into various shapes for decoration

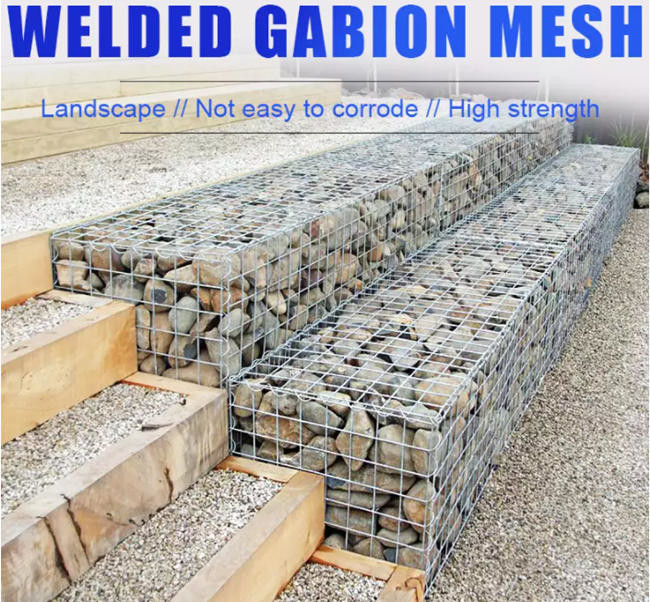

welded gabion mesh applications:
1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection
welded gabion mesh cage dimensions:
Manufacture Stone Galvanized Gabion Welded Fence Mesh Box For Wall
| Nominal Box sizes (m) | Mesh size (mm) | No. of diaphragms (no.) | Capacity per box (m3) |
| 1.0x1.0x0.5 | 50x50 75x75 50x100 100x100 | 0 | 0.50 |
| 1.0x1.0x1.0 | 0 | 1.00 |
| 1.5x1.0x0.5 | 0 | 0.75 |
| 1.5x1.0x1.0 | 0 | 1.50 |
| 2.0x1.0x0.5 | 1 | 1.00 |
| 2.0x1.0x1.0 | 1 | 2.00 |
| 3.0x1.0x0.5 | 2 | 1.50 |
| 3.0x1.0x1.0 | 2 | 3.00 |
| 4.0x1.0x0.5 | 3 | 2.00 |
| 4.0x1.0x1.0 | 3 | 4.00 |
welded gabion mesh lnstallation:
1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones

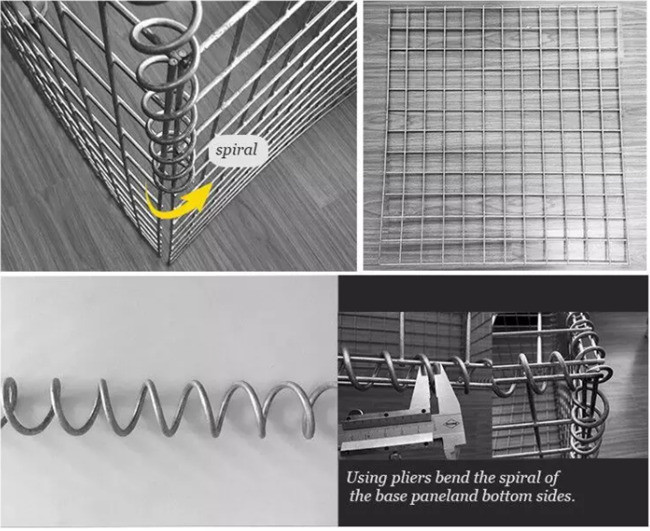

Welded gabion mesh accessories:
Packing and loading pictures of welded gabion mesh:
