Reinforced Galfan Gabion Mesh Box For Earth Retention And Steep Slope Protection

Name: Reinforced Galfan Gabion Mesh Box For Earth Retention And Steep Slope Protection
Brand: HBGB
Price: 1 USD

Reinforced Galfan Gabion Mesh Box For Earth Retention And Steep Slope Protection Manufactures

Brand Name : HBGB

Model Number : GB-003

Certification : ISO 9001

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Galvanized Gabion Box

Material : steel iron wire

Finishing : galvanized, pvc coated, or galfan coated

Wire diameter : 2.7mm

Selvage wire : 3.4 mm or customized

Tie wire : 2.2 mm or customized

Process method : hexagonal hole weaving

Feature : Anti-corrosion, fexibility

Aperture : 60mm x80mm , 80mm x100mm , 100mm x 120mm , 120mm x 150mm

Box size : 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m.

Contact Now

Reinforced Galfan Gabion Mesh Box For Earth Retention And Steep Slope Protection

Galvanized Gabion Box Descriptions:

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.

Galvanized Gabion Box Advantages:

1.Cost effective and environmentally friendly alternative to concrete system.
2.The Gabion structure blends easily and harmoniously with natural surroundings.
3.Simple and speedy installation, using natural or quarried stones obtained locally.
4.Ability to deform without cracking allowing the structure to withstand any unpredictable movement or settlement without loss or stability.
5.Higher resistance to natural forces due to better tensile strength.
6.Majority of manpower need not to be skilled and speed at which the work is carried out is unparalleled in civil engineering, besides making it cost effective.
7.Easy of repair to any damaged cages, with minimal expense.
8.The use of Gabions as retaining structures provides a low cost alternative to concrete or masonry retaining walls.

Mesh size and Wire diameter of Galvanized Gabion Box:

Mesh Size	Galvanized Gabion( Dia.mm)	PVC Gabion (Inside Dia/Outside Dia.mm)
60x80mm	Φ2.0-2.8	Φ2.0/3.0-2.8/3.8
80x100mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0
80x120mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0
100x120mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2
100x150mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2
120x150mm	Φ2.7-4.0	Φ2.7/3.7-3.5/4.5

The gabion box dimension we can make:

Length (m)	Width (m)	Height (m)	Spacer number	Volume (m2)	Tolerance range
2.0	1.0	0.15---0.3	1	0.3~0.6	Length :±/-3% Width :±/-5% Height :±/-5%
3.0	1.0	0.15---0.3	2	0.45~0.9
4.0	1.0	0.15---0.3	3	0.6~1.2
2.0	1.0	0.5	1	1.0
3.0	1.0	0.5	2	1.5
4.0	1.0	0.5	3	2.0
1.0	1.0	1.0	0	1.0
1.5	1.0	1.0	0	1.5
2.0	1.0	1.0	1	2.0
3.0	1.0	1.0	2	3.0
4.0	1.0	1.0	3	4.0

Reinforced Galfan Gabion Mesh Box For Earth Retention And Steep Slope Protection

Shipping:

Reinforced Galfan Gabion Mesh Box For Earth Retention And Steep Slope Protection

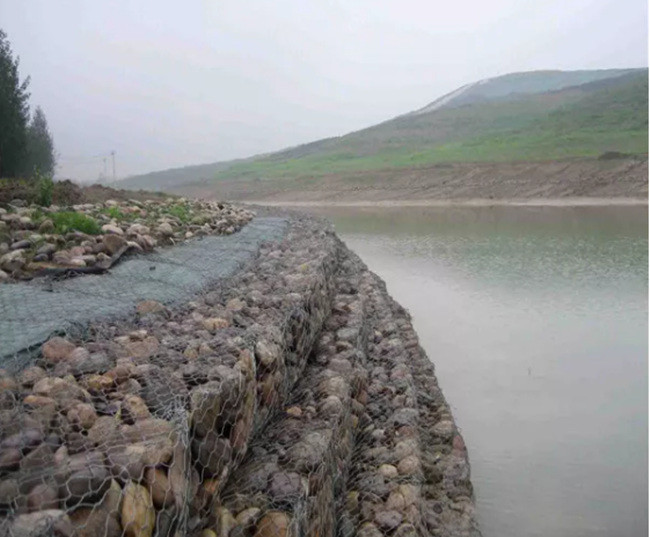

Application:

• Control and guide of water or flood

• Flood bank or guiding bank

• Prevention of rock breaking

• Water and soil protection

• Bridge protection

• Strengthening structure of soil

• Protection engineering of seaside area

• Seaport engineering

• Isolation walls

• Protection of road

Reinforced Galfan Gabion Mesh Box For Earth Retention And Steep Slope Protection
