Easy Installation Galvanized Steel Wire Welded Gabion Box Retaining Wall
Galvanized Welded Gabion Box Introduction:
Welded Gabion is made of welded mesh panels which are connected with different accessories.it is widely used in outdoor decoration,garden fence,stone bench ,retaining wall military barrier,flood barrier and so on.

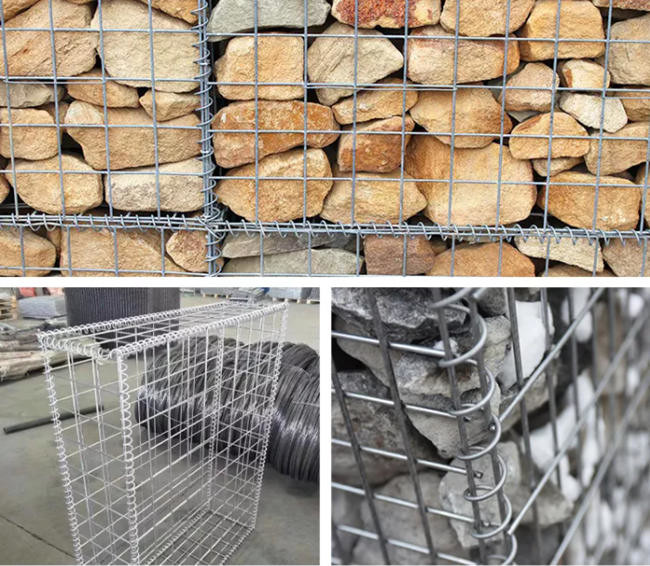

Structure of Welded galvanized gabion box:

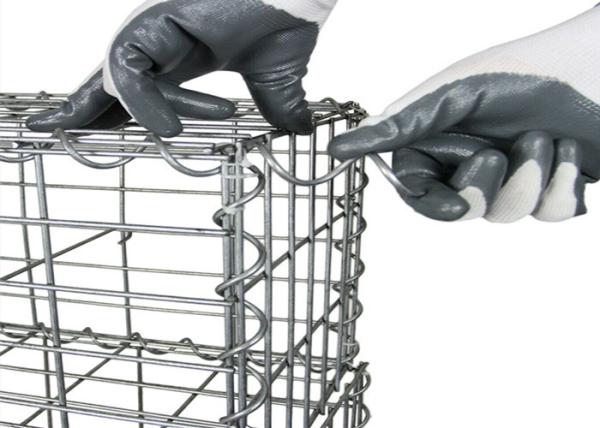

Each gabion is constructed of rugged high tensile wire which is coated with a thick corrosion-resistant layer of zinc. The wire is also available with a tough, durable PVC coating. The use of high quality materials results in a longer, more reliable gabion life. Welded Wire Gabions are supplied from stock in a complete range of sizes. Non-typical sizes to fit your unique site conditions are also available upon request.The welded mesh gabions is made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.
Dimensions of Galvanized Gabion Box:
| L x W x D (cm) | Diaphragms | Capacity (m3) | Standard wire dia. (mm) |
| 100x30x30 | 0 | 0.09 | Heavily Galvanized zinc coated wire 4.00, 5.00 |
| 100x50x30 | 0 | 0.15 | Heavily Galvanized zinc coated wire 4.00, 5.00 |
| 100x100x50 | 0 | 0.5 | Heavily Galvanized zinc coated wire 4.00, 5.00 |
| 100x100x100 | 0 | 1 | Heavily Galvanized zinc coated wire 4.00, 5.00 |
| 150x100x50 | 1 | 0.75 | Heavily Galvanized zinc coated wire 4.00, 5.00 |
| 150x100x100 | 1 | 1.5 | Heavily Galvanized zinc coated wire 4.00, 5.00 |
| 200x100x50 | 1 | 1 | Heavily Galvanized zinc coated wire 4.00, 5.00 |

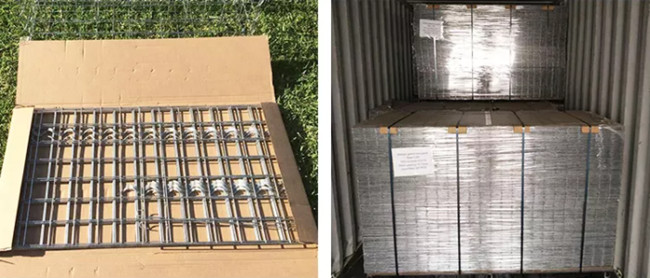

Packing and Shipping:

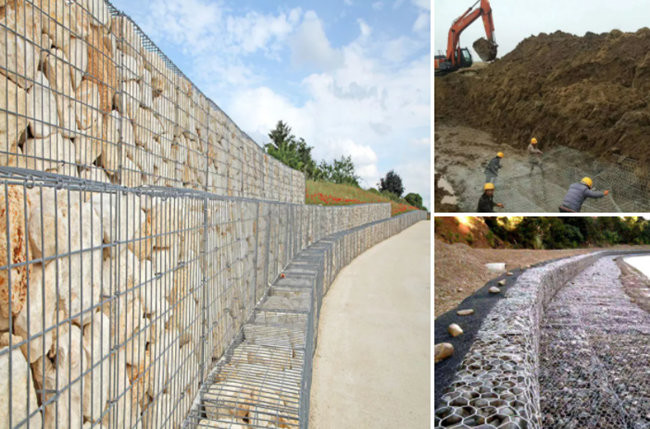

Applications:
1.)Flood discharge and lead flow
2.)Rock fall defending
3.)Preventing the water and soil lost
4.)Protecting the bridge
5.)Landscape gabion wall
6.)Seashore recovery project
7.)Seaport project
8.)Gabion retaining wall
9.)Defending the road
Company advantages:
1. The daily output is 100,000 square meters and the construction period is fast
2. Uniform mesh and small error
3. Accurate wire diameter
4. Strong binding of zinc layer, can't bend and twist off zinc
5. Long life, ranging from 10 to 30 years.
Welcome to visit our factory.
Product Tags:
|
|
3mm Steel Wire Retaining Wall Galvanized Welded Gabion Box Images
|
